Rib Cooled

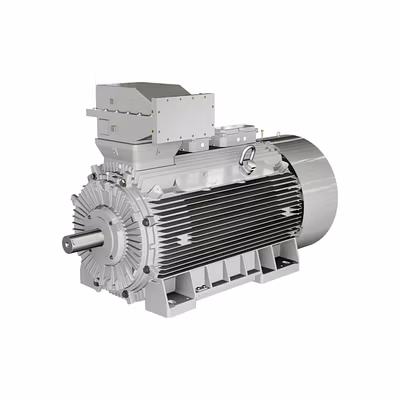

Series: KA2

Frame size: 315 - 560

Voltages: 2,3 - 15kV line and inverter operation

Power output: 160 - 19.000kW

Frame construction: Cast iron

Mounting arrangments: B3, V1, B35, B5

Degree of protection: IP55, IP56, IP65

Number of poles : 2 - 16

Temperature class: 155 (F) according to 130 (B)

Certificates: ATEX, IEC-EX

Cooling method: IC411

Ex protection level: II 3G Ex nA II T1-T4 Gc

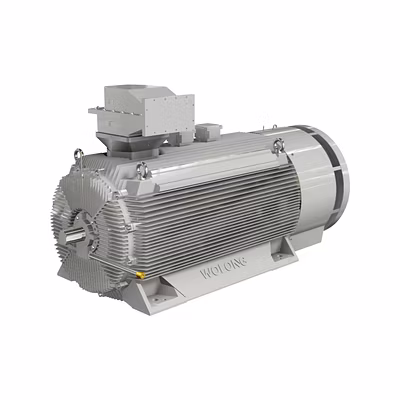

Series: KA3

Frame size: 315 - 500

Voltages: 2,3 - 15kV line and inverter operation

Power output: 180 - 16.000kW

Frame construction: Cast iron

Mounting arrangments: B3, V1, B35

Degree of protection: IP55, IP56, IP65, IP66

Number of poles : 2 - 16

Temperature class: 155 (F) according to 130 (B)

Certificates: CE

Cooling method: IC411

Bearings: Roling elements and sleeve bearings

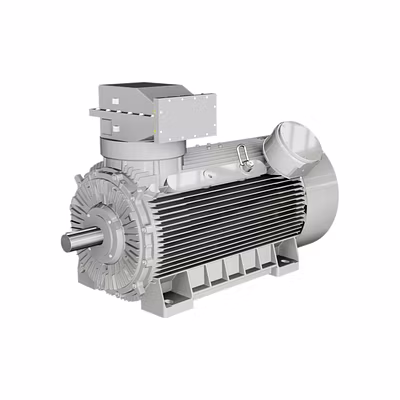

Series: KD2

Frame size: 355 - 500

Voltages: 2,3 - 15kV line and inverter operation

Power output: 180 - 16.000kW

Frame construction: Cast iron

Mounting arrangments: B3, V1, B35

Degree of protection: IP55, IP56, IP65

Number of poles : 2 - 16

Temperature class: 155 (F) according to 130 (B)

Certificates: CE

Cooling method: IC411

Ex protection level: Ex d IIB or C T4 Gb and Ex de IIB or C T4 Gb

Series: KE2

Frame size: 315 - 560

Voltages: 2,3 - 15kV line

Power output: 160 - 1330kW

Frame construction: Cast iron

Mounting arrangments: B3, V1, B35, B5

Degree of protection: IP55, IP56, IP65

Number of poles : 2 - 16

Temperature class: 155 (F) according to 130 (B)

Certificates: ATEX, IEC-EX

Cooling method: IC411

Ex protection level: Ex II 2 G Ex e IIC T3 Gb

Series: KZX

Frame size: 315 - 500

Voltages: 2,3 - 15kV line and inverter operation

Power output: 375 - 1320kW

Frame construction: Fabricated steel

Mounting arrangments: B3, V1, B35

Degree of protection: IP55, IP56, IP65, IP66

Number of poles : 2 - 16

Temperature class: 155 (F) according to 130 (B)

Certificates: CE

Cooling method: IC411

Bearings: Roling elements and sleeve bearings

Series: KA5 H-OPTIM

Frame size: 315 - 560

Voltages: 2,3 - 15kV line and inverter operation

Power output: 375 - 1320kW

Frame construction: Cast Iron

Mounting arrangments: B3, V1, B35

Degree of protection: IP55, IP56, IP65, IP66

Number of poles : 2 - 16

Temperature class: 155 (F) according to 130 (B)

Certificates: CE, Zone 2/22 (IEC), Cl. I Div.2 (NEC)

Cooling method: IC411, IC410, IC416

Bearings: Roling elements and sleeve bearings
