EC Products

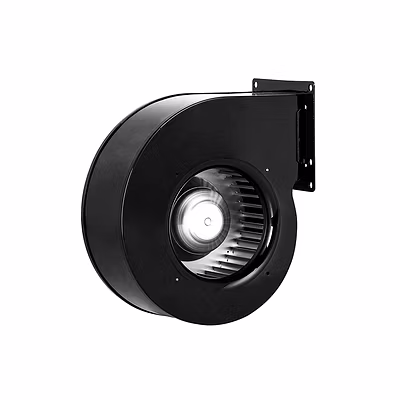

Power 65-200W Max. Speed 2550r/min Frequency 50/60Hz Max. Air flow 800m/h Supply voltage (VAC) 1~200-277V10% Mode of speed regulation 0-10V/PWM Impeller material PA66/Galvanized steel Impeller size 120, 133, 140, 146, 150, 160, 180mm Insulation class F protection degree IP44

Power 55-170W Max. Speed 4500r/min Frequency 50/60Hz Max. Air flow 1400m/h Supply voltage(VAC) 1~200-277VAC10% Mode of speed regulation 0-10V/PWM Impeller material PA66 Impeller size 133, 175, 190, 220, 225, 250mm Insulation class F protection degree IP44

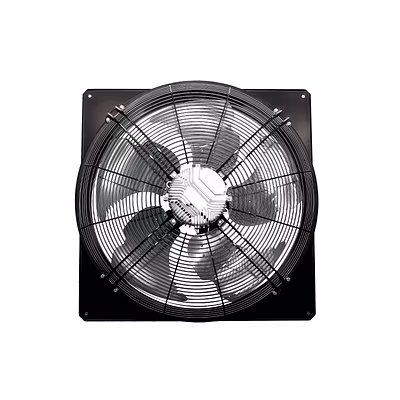

Power 370-3300W Max. Speed 1150r/min Frequency 50/60Hz Max. Air flow 35000m/h Supply voltage(VAC) 1~200-277V, 3~380-480V10% Mode of speed regulation 0-10V/PWM/RS485 Impeller material Aluminum alloy blade,Steel wheel hub,Impeller overall electrostatic spraying Impeller size 450, 500, 560, 630, 660, 710, 760, 800, 850, 900, 950mm Insulation class F protection degree IP55, IP66

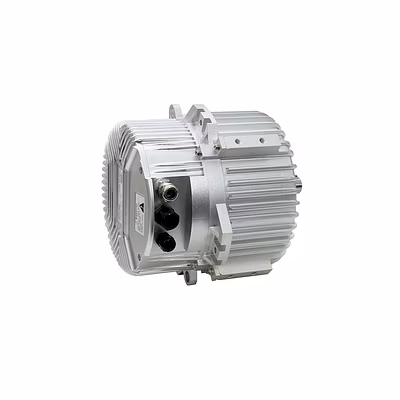

Power 1.1KW-1.5KW Speed 200-1800r/min Supply voltage 3~380-480VAC10% Frequency 50/60Hz Efficiency =IE4 Motor rotation Support for both the CW and CCW motor rotation options Mode of speed regulation RS485, PWM, 0-10V, 5 speeds Product characteristics Torque or speed constant protection degree IP44-IP66 Product certification UL, CE

Power 200W-1000W Speed 1050/1800r/min Supply voltage(VAC) 1~115,1~208-230,1~460-480,3~380-480 VAC10% Frequency 50/60Hz Efficiency =IE4 Motor rotation Support for both the CW and CCW motor rotation options Mode of speed regulation Serial port, PWM, 0-10V, RS485, 5 speeds Product characteristics Torque or speed constant protection degree IP20- IP66 Product certification CCC, UL, CE

Power 1.1KW-1.5KW Speed 200-1800r/min Supply voltage 3~380-480VAC10% Frequency 50/60Hz Efficiency =IE4 Motor rotation Support for both the CW and CCW motorrotation options Mode of speed regulation RS485, PWM, 0-10V, 5 steps Product characteristics Torque or speed constant Protection IP44-IP66 Product certification UL, CE

Power 1.8KW-3.0KW Speed 200-1800r/min Supply voltage (VAC) 3~380-480VAC10% Frequency 50/60Hz Efficiency =IE4 Motor rotation Support for both the CW and CCW motorrotation options Mode of speed regulation RS485,PWM,0-10V,5 speeds Product characteristics Torque or speed constant protection degree IP44-IP66 Product certification UL,CE
