Wolong

Series:A, L and N

Voltages:115-230V

Frame size:56 - 112

Frame construction: Aluminium

Power output:0,06 - 4 kW

Degree of protection: IP55, IP56, IP65, IP66

Mounting arrangments: B3, V5, V6, B5, V1, V3, B35, B6, B7, B8, B30

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:non classified or IE2

Cooling method:IC411, IC410, IC416, IC418

Number of poles: 2,4, 6, 8

Certificates: CE

Series:W

Voltages:200-690V line operation

Frame size:80 - 355

Frame construction:Cast iron

Power output:0,75 - 315kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, V5, V6, B5, V1, V3, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411, IC410, IC416, IC418
Number of poles: 2,4, 6, 8

Certificates: ATEX, IEC-EX

Series:M

Voltages:400V 50Hz

Frame size:56 - 225

Frame construction:Aluminium, Cast iron

Power output:0,25 - 100kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, B5, B14, V6, V5, B35, V1

Temperature class: 155 (F) according to 130 (B)

Efficiency class:IE4

Cooling method:IC411, IC410, IC416, IC418
Speed range:0 - 3000 rpm

Certificates: CE

The W Series FUMEX motors are specifically designed for use in fume extraction and ventilation systems. These motors provide powerful airflow with high efficiency, ensuring effective removal of fumes, dust, and other airborne contaminants from industrial environments. The W Series FUMEX motors are built to withstand continuous operation and harsh conditions, making them a reliable choice for improving air quality in workplaces.
We are pleased to inform that we have all the regular rating motors in-stock and non-stock motors can be made available within short and flexible delivery period as per customer needs. We assure you our best competitive pricing and commercial terms. We Also Deal In Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, Abb, Baldor Etc. We Are Glad To Inform You That We Are Already On Vendor List Of Many Big Corporate House & Mnc'S.

Series:3ZK, 4ZK, 5ZK

Voltages:200-1.100V line and inverter operation

Frame size:355 - 500

Frame construction: Fabricated steel and cast iron

Power output: 375 - 1.320kW

Degree of protection: IP55, IP56, IP65, IP66

Mounting arrangments: B3, B5, V1

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class: non classified

Cooling method: IC411

Number of poles: 2,4, 6, 8, 10

Certificates: CE

Series:KN

Voltages:200-690V line and inverter operation

Frame size:250 - 400

Frame construction:Cast iron

Power output:37 - 1.300 kW

Degree of protection:IP23

Mounting arrangments:B3, V5, V6, B5, V1, V3, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3, IE4

Cooling method:IC01, IC06

Number of poles: 2,4, 6, 8, 10

Certificates: CE

Series:3ZK, 4ZK, 5ZK

Voltages:200-1.100V line and inverter operation

Frame size:315 - 560

Frame construction: Fabricated steel and cast iron

Power output: 375 - 1.320kW

Degree of protection: IP55, IP56, IP65, IP66

Mounting arrangments: B3, B5, V5, V6, V1, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class: IE3

Cooling method:IC411, IC410, IC416, IC418

Number of poles: 2,4, 6, 8, 10

Certificates: CE

Series:w

Voltages:200-690V line and inverter operation

Frame size:63 - 355

Frame construction:Aluminium and Cast iron

Power output:0,06 - 4 kW

Degree of protection: IP55, IP56, IP65, IP66

Mounting arrangments: B3, V5, V6, B5, V1, V3, B35, B6, B7, B8, B30

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3, IE4

Cooling method:IC411, IC410, IC416, IC418

Number of poles: 2,4, 6, 8

Certificates: CE

Series: ZP

Voltages: 380 - 690V

Frame size: 160 - 400

Frame construction: Fabricated steel and cast iron

Power output: 7,5 - 500 kW

Degree of protection: IP55

Mounting arrangments: B3, B5, V1

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class: non classified

Cooling method: IC411

Number of poles: 4, 6, 8, 10

Certificates: CE

Series:A

Voltages:200-690V line and inverter operation

Frame size:56 - 280

Frame construction:Aluminium and Cast iron

Power output:0,06 - 90kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, V5, V6, B5, V1, V3, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE2, IE3

Cooling method:IC411, IC410, IC416, IC418

Number of poles: 2,4, 6, 8, 10

Certificates: CE

Series:WE3

Voltages:200-690V line and inverter operation

Frame size:56 - 355

Frame construction:Aluminium and Cast iron

Power output:0,06 - 90kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, V5, V6, B5, V1, V3, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411, IC410, IC416, IC418

Number of poles: 2,4, 6, 8, 10

Certificates: CE

Series:W, WP

Voltages:200-690V line and inverter operation

Frame size:80 - 355

Frame construction:Cast iron

Power output:0,75 - 315kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, V5, V6, B5, V1, V3, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411, IC410, IC416, IC418
Number of poles: 2,4, 6, 8

Certificates: ATEX, IEC-EX

Series:W-EF

Voltages:200-690V line and inverter operation

Frame size:90 - 315

Frame construction:Cast iron

Power output:0,75 - 200kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, B5, V5, V6, V1, V18, B14, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411
Number of poles: 2 - 8

Certificates: ATEX, IEC-EX

The W Series Ex tc motors are expertly crafted for hazardous environments, ensuring safety in dust-laden settings. With compliance to Ex tc standards, these motors offer reliable performance and durability for industries like grain processing and mining.

Series:W-EF

Voltages:200-690V line and inverter operation

Frame size:90 - 315

Frame construction:Cast iron

Power output:0,75 - 200kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, V5, V6, B5, V1, V3, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411

Number of poles: 2,4, 6, 8

Certificates: ATEX, IEC-EX

The W Series Ex tc motors are specially crafted for use in hazardous environments prone to dust particles, offering reliable performance and robust construction. These motors comply with Ex tc standards, ensuring safety in explosive dust cloud settings.

Series:W, WP

Voltages:200-690V line and inverter operation

Frame size:80 - 355

Frame construction:Cast iron

Power output:0,75 - 315kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, V5, V6, B5, V1, V3, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411, IC410, IC416, IC418
Number of poles: 2,4, 6, 8

Certificates: ATEX, IEC-EX

Series:EC

Voltages:380 - 480V 50 or 60Hz
Frame size:Special

Frame construction:Steel

Power output:3,7kW max

Degree of protection:IP55 - IP66
Mounting arrangements:Specific mounting arrangement
Efficiency class:IE4
Speed range:200 - 1800 rpm

Certificates:UL, cUL, CE

Series:LN, DQ

Voltages:400, 690V inverter operation

Frame construction:Fabricated steel
Power output:37 - 1300 kW

Degree of protection:IP23

Mounting arrangements:B3, other

Temperature class:155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:special

Cooling method:IC01, IC06

Number of poles:2, 4,

Certificates:CE

Speed range:up to 15.000 min-1

Discover superior industrial efficiency with the Wolong MP series motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.
MP series

Discover superior industrial efficiency with the Wolong DDS Direct Drive series motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.
DDS Direct Drive series

Discover superior industrial efficiency with the Wolong MD series motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.
MD series

Series:EC Vector

Voltages:115, 208 or 230V 1 phase 50 or 60Hz

Frame size:Special

Frame construction:Steel

Power output:1/4 - 1 Hp

Degree of protection:IP20, IP55

Mounting arrangments:Specific mounting arrangement

Efficiency class:IE4

Speed range:200 - 1800 rpm

Certificates: UL, cUL, CE

Series:HB

Voltages:200-1.100V line and inverter operation
Frame size:315 - 560

Frame construction:Cast Iron

Power output:375- 1.320kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangements:B3, B5, V5, V6,V1, B35

Temperature class:155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411, IC410, IC416, IC418

Number of poles:2, 4, 6, 8, 10

Certificates:CE

Series:CD; BD, BBD

Voltages:200-690V line and inverter operation

Frame size:63 - 500

Frame construction:Cast iron

Power output:0,12 - 630kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, B5, V5, V6, V1, V18, B14, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411, IC410, IC416, IC418
Number of poles: 2 - 16

Certificates: ATEX, IEC-EX

Series:KD1, KD2
Ex protection level: Ex d IIB or C T4 Gb and Ex de IIB or C T4 Gb

Voltages:200-690V line and inverter operation

Frame size:63 - 500

Frame construction:Cast iron

Power output:0,12 - 800kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangments:B3, B5, V5, V6, V1, V18, B14, B35

Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411, IC410, IC416, IC418
Number of poles: 2 - 8

Certificates: ATEX, IEC-EX

Discover superior industrial efficiency with the Wolong SRK Top Drive motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.
SRK Top Drive

The BKZ Series motors are built for heavy-duty industrial applications, offering high torque and robust performance. These motors are designed to handle the toughest conditions, making them ideal for use in crushers, mills, and other heavy machinery. With enhanced durability and energy efficiency, the BKZ Series motors provide reliable operation and long service life, even in the most demanding environments.
We are pleased to inform that we have all the regular rating motors in-stock and non-stock motors can be made available within short and flexible delivery period as per customer needs. We assure you our best competitive pricing and commercial terms. We Also Deal In Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, Abb, Baldor Etc. We Are Glad To Inform You That We Are Already On Vendor List Of Many Big Corporate House & Mnc'S.

Certificates:CE

Voltages:380 - 690 V
Frame size:180 - 355

Frame construction:Fabricated steel

Power output:22-800 kW

Degree of protection:IP23

Mounting arrangments:B3, V1

Temperature class:155 (F) according to 130 (B)

Cooling method:IC01

Number of poles:2 - 16

Certificates:CE

Series:BN

Voltages:200-690V line and inverter operation

Frame construction:Cast iron

Power output:37 - 1.300 kW

Degree of protection:IP23

Mounting arrangements:B3, V5, V6, B5, V1, V3, B35

Temperature class:155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE2, IE3

Cooling method:IC01, IC06

Number of poles:2, 4, 6, 8, 10

Certificates:CE, ABS, BV, DNVGL, KR, LRS, RINA, RS

The BOK Series IP23 motors are designed with an open drip-proof (ODP) enclosure, offering protection against dust and water ingress while allowing efficient cooling. These motors are ideal for indoor applications where ventilation is sufficient, such as in pump stations and HVAC systems. The BOK Series IP23 motors are known for their reliability and energy efficiency, providing consistent performance in controlled environments.
We are pleased to inform that we have all the regular rating motors in-stock and non-stock motors can be made available within short and flexible delivery period as per customer needs. We assure you our best competitive pricing and commercial terms. We Also Deal In Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, Abb, Baldor Etc. We Are Glad To Inform You That We Are Already On Vendor List Of Many Big Corporate House & Mnc'S.

Series:BD

Voltages:200-1.100V line and inverter operation
Frame size:315 - 560

Frame construction:Cast Iron

Power output:375- 1.320kW

Degree of protection:IP55, IP56, IP65, IP66

Mounting arrangements:B3, B5, V5, V6,V1, B35

Temperature class:155 (F) according to 130 (B) or 180 (H) according to 155 (F)

Efficiency class:IE3

Cooling method:IC411, IC410, IC416, IC418

Number of poles:2, 4, 6, 8, 10

Certificates:CE

Series:WEXF

Temperature class:F400
Frame size:80 -355

Voltages:220 - 400V line and inverter operation

Power output:0,75- 355kW

Frame construction:Cast iron

Mounting arrangments:B3, B5, V5, V6,V1,V18, B14, B35, B30

Degree of protection:IP55, IP56, IP65, IP66

Number of poles:2 - 8

Insulation class:155 (F) or180 (H)
Certificates:CE

Cooling method:IC411, IC418

Efficiency class:IE3

Duty cycle:Dual purpose S1 or only S2 for emergency duty

Series Energy Saver Voltages

230 - 575V line and inverter operation

Series KE2 Ex protection level

Ex II 2 G Ex e IIC T3 Gb

Series KA5 H-OPTIM Voltages

2,3 - 11kV line and inverter operation

Series XSD Ultra,XSD Ultra 841,XSD Ultra 661 Voltages

230 - 575V line and inverter operation

NEMA, UL, CSA, IEEE 45, 841, 112B, and GM 7E-TA

Series KV Voltages

2,3 - 15kV line and inverter operation

Series PZ Voltages

3 - 13,8 kV

Series KU Ex protection level

Ex II 3G Ex nA IIC T3

Ex II 2G Ex e IIC T3 Gb

Ex II 2G Ex px e ib IIC T3 Gb

Series KR Ex protection level

II 3G Ex nA II T1-T4 Gc

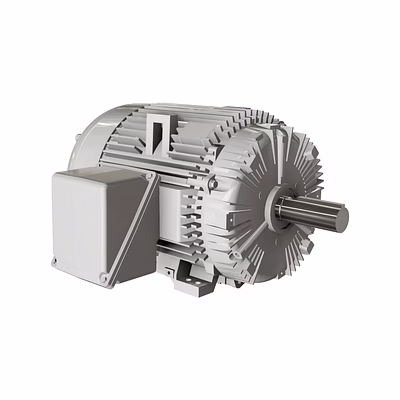

Discover superior industrial efficiency with the Wolong PT series motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.
PT series

Brand Wolong Morley Ex protection level
Frame size
Voltages
Power output
Frame construction
Mounting arrangments
Degree of protection
Number of poles
Temperature class
Certificates
Cooling method

Rated Power 30kW Max Power 100Nm Max Power
60~150KW Max Torque 200~900Nm Max Speed 4500~10000rpm Cooling Method Water cooling IP Class IP 67

Specification Input power 1~1.5kW/ 3Hp Input Voltage 36 V~57.6 V Rated Voltage 48 V Battery Battery type Lithium Battery capacity 936 wh Battery life 800 cycles at 100% DOD Charging time 3 Hrs (fast charger),8 Hrs(standard charger) Battery Weight 5.5 kg Motor Motor Weight < 12 kg Motor type PMsM
permanent magnet synchronous motor Motor efficient 86% Motor Control FOC Propeller Propeller 11''*5.5'' inch 2-blade 279.4mm * 139.7mm Propeller RPM 1200rpm Shaft length 68 cm / 26.8 inch Control handle Remote/ Tiller Trim/ Tilt Angle 0,7,14,21/70 Cooling external natural cooling IP 67 Interaction Communication CAN Intelligent interaction Bluetooth?GPS?NB Protection over temperature, over current, over voltage, under voltage, overload, locked rotor, communication failure.

Specification Input power 5 kW Input Voltage 36 V~57.6 V Rated Voltage 48 V Motor Motor Weight 18 kg Motor type PMSM
permanent magnet synchronous motor Motor efficient 88% Motor Control FOC Propeller
Propeller 11.75'' * 10'' 298.45mm * 254mm Propeller RPM 1500 rpm Control handle Remote control Cooling External natural cooling IP 68 Interaction Communication CAN Intelligent interaction Bluetooth?GPS?NB Protection over temperature, over current, over voltage, under voltage, overload, locked rotor, communication failure. Main Control Precharge,
Short Circuit Protection,
Communication Remote Control Forward,
backward,
speed control

Frame size Power factor
Power range Insulation
Pole's Protection
Voltages Cooling
Frequencies Connection
Duty Greasing
Speed Housing

Motor and drive unit core parameters Input voltage range 38.4 ~ 60 VDC Rated voltage 48 VDC Rated current 32 A Rated input power 1.5 kW Rated speed 1800 rpm Maximum output power 1.2 kW Communication method CAN2.0B Protection and monitoring Over temperature, over current, over voltage, under voltage, overload, locked rotor, communication failure. Structure and installation Overall structure and shape Ducted propeller and aluminum alloy shroud Installation and fixation threaded mounting holes Propeller outer diameter 166 mm; Outer diameter of conduit 176 mm Weight 8kg1kg IP Motor and drive unit--IP68
Other units--IP67 Cooling External natural cooling

Series No. Kitchen Mixer Motor Voltage(V) 120 Power(W) 1500 Frequency(Hz) 60 Outer diameter(mm) 98 Pole(P) 2

Rated Power 100kW Max Power 1250Nm Max Power
150~200KW Max Torque 500~2800Nm Max Speed 3000~10000rpm Cooling Method Water cooling IP Class IP 67
