AC MOTORS

Overview

Specially modified motors designed for above deck and offshore (wet environments) and below deck (dry environments) capable of meeting multiple Marine agency certifications and requirements.

Sizes

.2-1,500Hp, .1-1,120kW: 115-4000 VAC, TEFC, TENV, DPP, or TEWC: NEMA & IEC frame sizes

Features

Marine duty epoxy paint, corrosion resistant hardware, commercial VPI windings, steel, casting iron, or ductile iron construction, spraytight, watertight, explosion proof enclosures. Certifications include: ABS, Lloyds Registry, DNV, USCG-256, IEEE-45-2002, and NEMA MG1

Suggested applications

Pumps, fans, deck equipment, thrusters, auxiliary propulsion, winches, capstans

Discover superior industrial efficiency with the BALDOR Buffers motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Buffer designed for use with soft cloth wheels, guards and tool rests.

Sizes

0.19 - 536 kW, 0.25 - 7.5 Hp, 0.25 - 7.5 Hp

Features

Steel frame enclosure and base

Suggested applications

Buffing

Overview

Industrial belt sanders

Sizes

0.25 - 1.12 kW, 0.25-1.5 Hp, three phase

Features

There are several industrial belt sander options, fixed and tiltable belts, grinder/sanders and even an adjustable speed sander for increased flexibility.

All units come with a base mounted on/off switch.

602E-MT equipped with 2x36" 100 grit belt, all others 2x48" 80 grit belt.

Suggested applications

Sanding

Overview

Motors designed for optimized performance and longer life on critical above deck and below deck applications.

Sizes

.2-500Hp, .1-375kW: 115-690 VAC, TEFC, TENV, DPP, or TEWC: Spraytight, Watertight, Explosion Proof, Submersible Enclosures: NEMA & IEC frame sizes

Features

Motors meet all pertinent military specifications for fractional and integral AC motors including critical specifications pertaining to energy efficiency, sealed insulation, reduced weight, low airborne noise, and low structure-borne noise requirements. Specifications include: Mil-M-17059A, Mil-DTL-17060, Mil-S-901, Mil-STD-167-1, Mil- STD-740, Mil-STD-2037

Suggested applications

Pumps, fans & air handling, deck equipment, underway replenishment equipment, thrusters, auxiliary propulsion, winches, capstans

Overview

Industrial polishing lathes

Sizes

0.19 - 0.56 kW, 0.25 - 0.75 Hp, single phase

Features

All lathes are supplied with 8-foot cord with plug, rubber feet and heavy construction to minimize vibration.

Provisions for mounting to a laboratory bench are provided.

Suggested applications

Polishing - dental labs, jewelers, lapidary

Overview

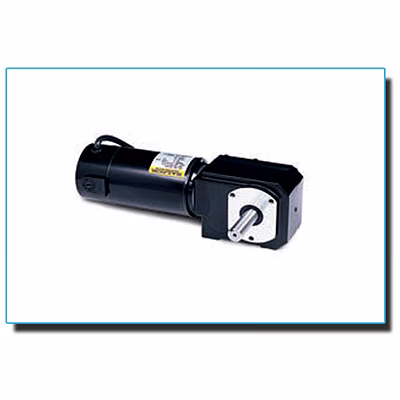

Right angle and parallel shaft designs for industrial applications precision matched AC motor and gear ratios for optimized performance

Sizes

0.56 - 124 Nm, 5 - 1,100 in.-lbs., output torque

Features

Each unit is factory filled with synthetic oil and lubricated for life maximum efficiency and reduced maintenance.

Right angle configurations feature exclusive internal expansion bladder to keep lubrication in and contamination out.

Suggested applications

Material handling, packaging machinery, machine tools, conveyors, printing presses, commercial ovens, car washes

Overview

Right angle and parallel shaft designs for industrial applications with precision matched DC motor and gear rations for optimized performance

Sizes

0.85 - 124 Nm, 7.5 - 1,100 in.-lbs., output torque

Features

Armature / rotor is dynamically balanced for vibration free operation.

Each unit is factory filled with synthetic oil and lubricated for life maximum efficiency and reduced maintenance.

Suggested applications

Material handling, packaging machinery, machine tools, conveyors, printing presses, commercial ovens, car washes

Overview

A base mounted on/off switch or starter with overload protection and three year warranty

Sizes

152 - 355 mm, 6 - 14 in. wheel diameters, single and three phase

Features

A base mounted on/off switch or starter with overload protection and three year warranty

Suggested applications

Grinding

Overview

Totally-enclosed, XP motors designed for underground coal mining, coal preparation, or transportation of mined coal.

Sizes

AC: 2-225 kW, 5-300 Hp, 230-1000 VAC, TEFC, TENV, or TEWC; NEMA & IEC frame sizes

DC: 20-50 Hp, 110-460 VDC, TENV or TEWC, NEMA frame sizes

Features

Designed and certified for hazardous mining atmospheres. Meets or exceeds global high efficiency energy standards. Special shaft configurations, double shaft extensions, and flange mounting configurations available. Global certifications include MSHA, ATEX, ANZEx, and IECEx.

Suggested applications

Pumps, fans, conveyors, and traction motors for continuous and longwall miners, feeder breakers, roof bolters, and haulers/scoops.

Overview

NEMA platform --highest power producing DC motor product available. The power dense low profile design makes it easy to displace the competition and integrate into almost any existing application.

Sizes

93 - 895 kW, 125 - 1,250 Hp NEMA

Features

Compensated windings provide linear torque per amp and better commutating during overload conditions. self monitoring brush wear system, rotatable rocker ring for easy brush change, reduced maintenance design technologies

Suggested applications

Pulp and paper processing, extruders, conveyors, test stands, stamping press, crane and hoist, rolling mills, machine tools, ski lift, etc.

Overview

IEC platform - highest power producing DC motor product available. The power dense low profile design makes it easy to displace the competition and integrate into almost any existing application.

Sizes

22 - 1305 kW, 30 - 1,751 Hp IEC

Features

All enclosure types (DPBV,TEDC-AA, TEDC-AW), self monitoring brush wear system, rotatable rocker ring for easy brush change, reduced maintenance design technologies.

Suggested applications

Pulp and paper processing, extruders, conveyors, test stands, stamping press, crane and hoist, rolling mills, machine tools, ski lift, etc.

Overview

The largest of the DC product family - a laminated construction with removable pole assemblies that promote serviceability and robustness for the most demanding applications.

Sizes

372 - 2237 kW, 500 - 3,000 Hp NEMA

Features

A variety of thermal protections, speed feedback devices, all enclosure styles, vibration detection, VPI, air flow monitoring, water flow monitoring, etc.

Suggested applications

Pulp and paper processing, extruders, conveyors, test stands, stamping press, crane and hoist, rolling mills, machine tools, ski lift, etc.

Overview

Rolled steel round body frame construction constructed for easy drop in replacement opportunities.

Sizes

3.7 - 372 kW, 5 - 500 Hp NEMA

Features

A variety of thermal protections, speed feedback devices, vibration detection, and non ventilated or ventilated enclosure types.

Suggested applications

Pulp and paper processing, extruders, conveyors, test stands, stamping press, crane and hoist, machine tools, etc.

Overview

Laminated frame design provides more power, reliability and serviceability in a smaller package. A larger armature allows optimum power generation and better ventilation for heat dissipation than standard round frame motors.

Sizes

3.7 - 372 kW, 5 - 500 Hp NEMA & IEC

Features

A variety of enclosure styles are available to meet customer environmental conditions.

Suggested applications

Mill drives, tube mills, coating lines, winders, printing presses, extruders, mixers, spindle drives

Overview

Motors designed with bonded neodymium magnets and medium inertia rotor for load inertia matching

Sizes

1.2 - 134 Nm continuous torque

Features

3x continuous torque

Totally enclosed, CE/cURus

A completely encapsulated winding allows heat to dissipate while protecting internal components from contamination.

Multiple feedback types to fit a range of applications

Suggested applications

Cut-to-length, flying shear, machining, labeling, material handling, winding, robotics

Overview

For adjustable speed operation from SCR controls, two designs are available - wound field and permanent magnet. 20:1 constant torque speed range with 90 to 180 VDC armatures.

Sizes

0.01 - 2.23 kW, 0.02 - 3 Hp wound field NEMA & IEC

0.18 - 3.73 kW, 0.02 - 5 Hp permanent magnet NEMA & IEC

Features

Motor construction and features can be tailored for specific applications and industries.

Suggested applications

Conveyors, extruders, packaging equipment, mixers, winders, printing presses, and metering pumps

Overview

All stainless steel construction and laser marked nameplate makes SSBSM suitable for pharmaceutical and food processing industries.

Sizes

1.2 - 134 Nm continuous torque

Features

3 - 4x continuous torque

Totally enclosed, CE/cURus

A completely encapsulated winding allows heat to dissipate while protecting internal components from contamination.

IP67 rated enclosure for washdown conditions

BISSC - complies with Baking Industry Sanitation Standards Committee

Suggested applications

Packaging, food handling, bakery machinery, beverage equipment, measuring dispensing equipment

Overview

Featuring Dodge short series brakes which are spring set, magnetically released power off type brakes integrally mounted to the motor for the most compact design

Sizes

0.6 - 48 Nm continuous torque

Features

3x continuous torque

Totally enclosed, CE/cURus

A compact segmented lamination design decreases overall length of the motor.

A completely encapsulated winding allows heat to dissipate while protecting internal components from contamination.

IP65 rated enclosure with optional shaft seal installed

Suggested applications

Cut-to-length, flying shear, machining, labeling, material handling, winding, 3D printing, robotics elevators, hoists

Overview

Featuring Dodge short series brakes which are spring set, magnetically released power off type brakes integrally mounted to the motor for the most compact design

Sizes

0.37 - 3.7 kW, 1/2 - 5 Hp totally enclosed, three phase

Features

Single phase brake, inverter ready

Suggested applications

Conveyors, baggage handling, unit handling, packaging, door operators, elevators, hoists

Overview

Featuring a Dodge "D" series brake which are spring set, magnetically released power off type brakes flange mounted to the motor with a manual release lever

Sizes

0.37 - 7.45 kW, 0.5 - 10 Hp totally enclosed, three phase

Suggested applications

Conveyors, baggage handling, unit handling, packaging, door operators, elevators, hoists

Overview

Motors designed for general unit handling applications

Sizes

0.37 - 5.6 kW, 0.5 - 7.5 Hp totally enclosed, single and three phase

Features

Motors feature an oversized low profile top mounted conduit box on 56 and 140T frames that provides easy access for making connections.

Footed frames include slotted feet for easy mounting on OEM conveyors.

UL/CSA recognized and CE certified

Suggested applications

Conveyors, baggage handling, unit handling, packaging, door operators, elevators, hoists

Discover superior industrial efficiency with the BALDOR U-Frame Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Sizes

0.55 - 15 kW, 3/4 - 20 Hp

Suggested applications

U-frame mounting dimensions for three-phase and single phase applications

Discover superior industrial efficiency with the BALDOR Single Phase Pressure Washer Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Sizes

1.1 - 4 kW, 1-1/2 - 5 Hp

Suggested applications

Specifically designed for operation on pressure washers and steam cleaners

Discover superior industrial efficiency with the BALDOR Two Speed Foot Mounted Motors In Tefc And Odp Designs motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Sizes

0.37 - 19 kW, 1/2 - 25 Hp

Suggested applications

Designed for specific applications requiring multi-speed operation. Variety of torque and voltage ratings available.

Discover superior industrial efficiency with the BALDOR Shaft Grounding Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Shaft grounding motor for HVAC applications

Sizes

0.75 - 398 kW, 1 - 400 Hp totally enclosed, open drip proof, three phase

Discover superior industrial efficiency with the BALDOR Ec Gold motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Highly efficient Synchronous PM motor

Sizes

0.5 - 7.5 Hp

Discover superior industrial efficiency with the BALDOR Chiller / Cooling Tower Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

HVAC motors designed for wet, high humidity environments

Sizes

3.7 - 111 kW, 5 - 150 Hp totally enclosed, three phase

Discover superior industrial efficiency with the BALDOR General Hvac motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Super E NEMA Premium efficient HVAC motors in ODP and TEFC designs with ball bearings and plugged grease packages

Sizes

0.75 - 74.57 kW, 1 - 100 Hp totally enclosed, open drop proof, three phase

Overview

DC servo motors have a high inertia skewed rotor for load inertia matching and smooth rotation (no cogging).

Sizes

0.2 - 6.3 Nm continuous torque

Features

Totally enclosed, CE/cURus

Multiple feedback types to fit a range of applications

Suggested applications

X-ray tables, coil winders, labeling equipment, machine tool, robotics, pick and place, packaging

Overview

Motors designed with high performance neodymium magnets and low inertia rotor for faster acceleration.

Sizes

0.4 - 40 Nm continuous torque

Features

4x continuous torque

Totally enclosed, CE/cURus

A completely encapsulated winding allows heat to dissipate while protecting internal components from contamination.

Multiple feedback types to fit a range of applications

Suggested applications

Cut-to-length, flying shear, machining, labeling, material handling, winding, 3D printing, robotics elevators, hoists

Overview

Low inertia, high efficient motor with fast action DC brake with an integral rectifier

Sizes

0.37 - 2.2 kW, 0.5 - 3 Hp totally enclosed, three phase

Features

Aluminum frame engineered for increased thermal heat dissipation

Suggested applications

Frequent start/stop applications, conveyors, baggage handling, unit handling, packaging, door operators, elevators, hoists

Discover superior industrial efficiency with the BALDOR Ammonia Refrigeration Compressor Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Sizes

112 - 745 kW, 150 - 1,000 Hp

Suggested applications

Ammonia refrigeration compressors, particularly in food processing facilities

Discover superior industrial efficiency with the BALDOR Direct Drive motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Direct drive motor for HVAC applications

Sizes

0.18 - 1.11 kW, 0.25 - 1.5 Hp open drip proof, single phase

0.19 - 7.5 kW, 0.25 - 10 Hp totally enclosed, open drip proof, three phase

Discover superior industrial efficiency with the BALDOR Aeration Fan Motor motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Motors designed for direct drive fan applications

Sizes

0.6 - 2.2 kW, 0.75 - 3 Hp totally enclosed, single and three phase

Discover superior industrial efficiency with the BALDOR Direct Drive Fan Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Motors designed for grille or resilient base mount direct drive fan applications

Sizes

0.18 - 0.6 kW, 0.25 - 0.75 Hp totally enclosed, single phase

Discover superior industrial efficiency with the BALDOR Grain Dryer / Vane Axial Fan Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Designed as dual rated for either in or out of air stream vane axial fan applications

Sizes

1.12 - 11.2 kW, 1.5 - 15 Hp open air over, totally enclosed,single and three phase

Discover superior industrial efficiency with the BALDOR Rpm Ex - Extreme Efficient Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Innovative, NEMA drop-in replacement motor achieves leading efficiency and lower lifetime operational costs.

Sizes

7.5 - 74.5 kW, 10 - 100 Hp totally enclosed - fan cooled, three phase

Discover superior industrial efficiency with the BALDOR Ac Inverter / Vector Duty Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Inverter duty motors for open loop control and vector duty motors for closed loop control are available in standard NEMA frame totally enclosed non-vent and blower cooled designs.

Sizes

0.25 - 150 kW, 1/3 - 200 Hp totally enclosed, three phase

Overview

The Baldor-Reliance RPM AC direct drive cooling tower motor eliminates the maintenance and failure of mechanical components associated with traditional cooling tower systems by directly coupling the motor to the fan and controlling it with a unique drive.

Sizes

5.6 - 186 kW, 7.5 - 250 Hp totally enclosed, three phase

Discover superior industrial efficiency with the BALDOR Grain Dryer / Centrifugal Fan Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Designed for direct drive centrifugal blower applications with little to no shelter.

Sizes

2.2 - 74 kW, 5 - 100 Hp totally enclosed, three phase

3.7 - 22 kW, 5 - 30 Hp open drip proof, three phase

3.7 - 12 kW, 5 - 16 Hp open drip proof, single phase

Overview

RPM AC product line provides the ultimate in power density performance in either totally enclosed or open construction. RPM AC motors provide continuous Constant Torque performance (1000:1) from zero speed to base speed.

Sizes

1.5 - 900 kW, 2 - 1200 Hp; DPFV, TEFC, TEBC, TEFC, three phase

Discover superior industrial efficiency with the BALDOR Explosion Proof Pump Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

UL & CSA listed for Class I, Group D; Class I, Group C & D; Class I, Group D, Class II, Group F & G.

Sizes

0.37 - 150 kW, 0.25 - 200 Hp totally enclosed, three phase

Discover superior industrial efficiency with the BALDOR Ac V*S Master Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

V*S master motors provide continuous constant torque performance (1000:1) across the entire speed range from zero speed to base speed.

Sizes

0.25 - 372 kW, 1/3 - 500 Hp totally enclosed, three phase

Discover superior industrial efficiency with the BALDOR Explosion Proof, Inverter Duty Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Suitable for operation on adjustable speed (PWM inverter type) input power. 10:1 variable torque speed range, up to 10:1 constant torque speed range.

Sizes

0.24 - 186 kW, 0.33 - 250 Hp totally enclosed, inverter duty

Discover superior industrial efficiency with the BALDOR Drill Rig Duty Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

UL & CSA listed for Class I (gas), Group C & D with a T3C temperature code.

Sizes

0.37 - 150 kW, 0.25 - 200 Hp totally enclosed, three phase

Discover superior industrial efficiency with the BALDOR Fire Pump motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Motors designed to meet the requirements for fire pumps.

Sizes

7.45 - 398 kW, 1 - 400 Hp open drip proof, three phase

Discover superior industrial efficiency with the BALDOR Explosion Proof Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

UL & CSA approved for Class I, Group D; Class I, Group D, Class II, Group F & G; Class I, Group C & D, Class II Group F & G.

Sizes

0.18 - 224 kW, 0.25 - 300 Hp totally enclosed, single and three phase

Discover superior industrial efficiency with the BALDOR Immersible Motors motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.

Overview

Custom Immersible motors are designed for use in non-hazardous area dry pit applications where the possibility of flooding exists.

Sizes

3.73 - 186 kW, 5 - 250 Hp totally enclosed, three phase
